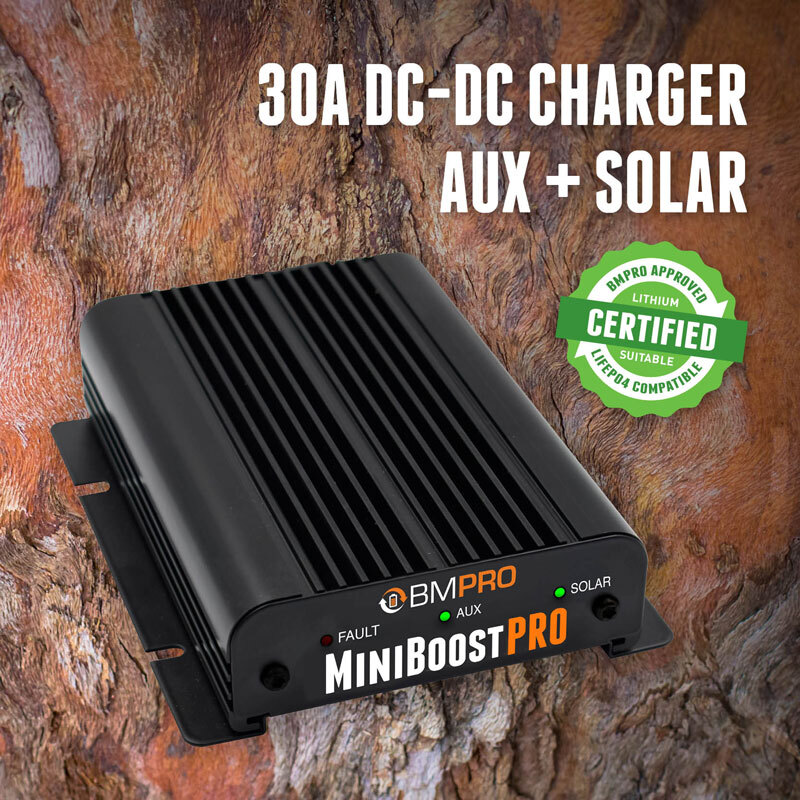

BMPRO’s MiniBoostPRO is a compact Lithium DC-DC charger with solar input, specially designed for the RV market. The MiniBoostPRO battery charger offers effective charging of your caravan, 4WD or camper trailer’s house battery from the towing vehicle’s electrical system. Blending both solar and auxiliary inputs, the MiniBoostPRO provides a combined charging current of up to a maximum of 30A, with a preference to solar. It features proprietary technology designed to charge from modern car alternators. Moreover, it can be used with LiFePO4 batteries as well as with traditional lead acid batteries.

The MiniBoostPRO provides a multi stage charging profile. It functions when wired directly to 12V batteries and enhances BMPRO’s BatteryPlus35 and J35 battery management systems. A range of protective features built into the MiniBoostPRO will guard your caravan or camper trailer’s charging capacity.





(HU-MINIBOOSTPRO)

Auxiliary Input Voltage 9-15V DC
Solar Input Voltage 9-25V DC
Output Voltage Gel: 14.2V, AGM/Wet: 14.4.V,  LiFePO4: 14.6V
Float Voltage 13.6V
Output Current Auxiliary Bypass: max. 30A; Auxiliary Boost: max. 22A; Solar Charging: max. 30A; Blending Charging: max. 30A
Quiescent Current Draw Auxiliary/Primary Battery: < 25mA; Secondary Battery: < 18mA
Operating Temperature -20°C to 80°C
Dimensions 160mm x 131mm x 41mm
IP Rating IP20
Standards RCM Approval, EMC CISPR 11: 2015 Class B
Battery Chemistry Gel, AGM/Wet, LiFePO4

SKU HU-MINIBOOSTPRO
Brand BMPRO
Shipping Width 0.160m
Shipping Height 0.130m
Shipping Length 0.410m
Shipping Cubic 0.008528000m3
Unit Of Measure 1
