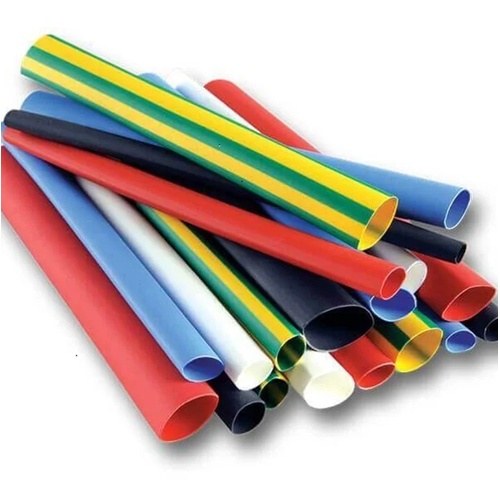

Heat Shrink Black 2M Tubing 11 Sizes Cable Insulation & Wire Sleeve Ratio 2:1
$4.50
In Stock

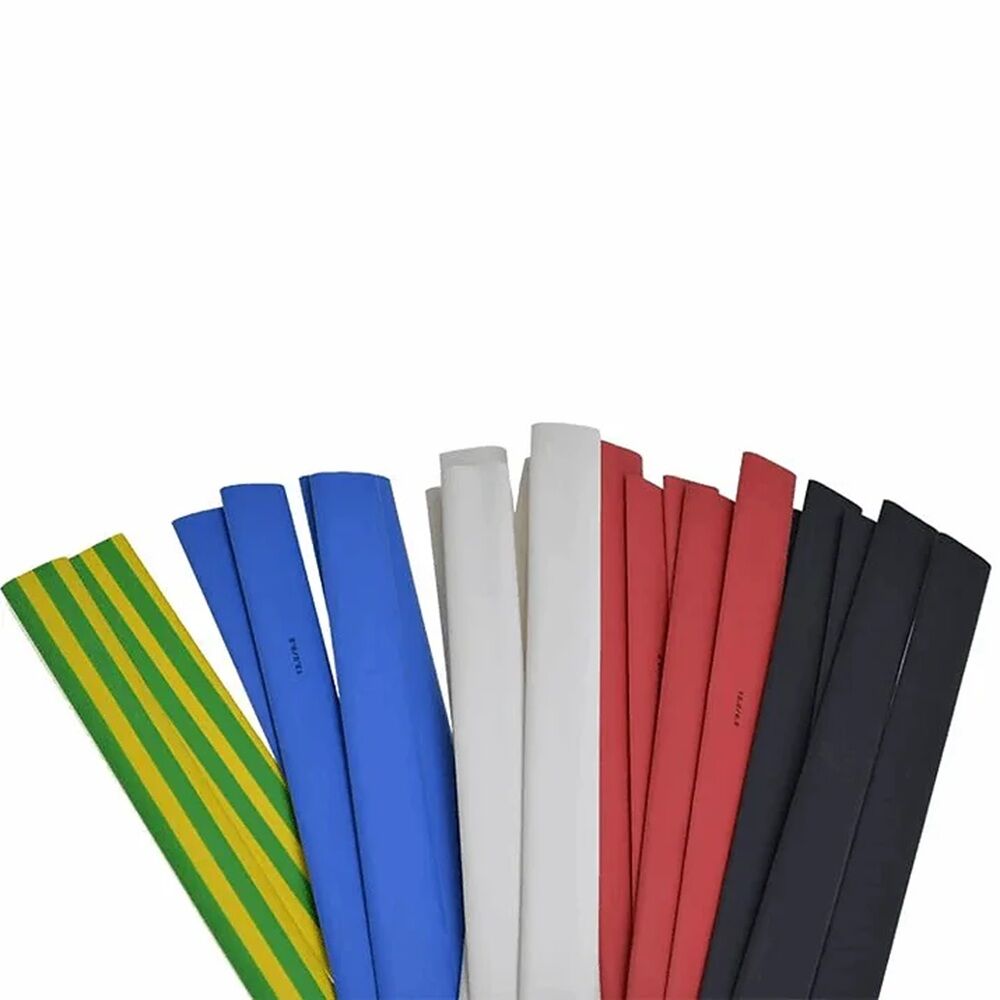

Black, Red, Blue Heat Shrink Tubing
11 Sizes Available - range 1,2,3,4,5,6,7,8,10.12,13,15.20,25 (mm)
Each Size is cut to 200mm in length
PRICE is for 2 Metres
Minimum order of 2 meters any size ( 10 x 200mm= 2m)
Note 1: i have 2 suppliers of heatshrink,
Note 1: i have 2 suppliers of heatshrink,
Note 2: Items above could be supplied with mm markings on the tube This can be removed by using metho. If you don't want the marking on the tubing please make contact prior to confirm that i have the correct size in stock without markings
Non flame retardant,flexible,low smoke,halogen free single wall heat shrink tubing is a shrinkable plastic tube used to insulate wires, providing abrasion resistance and environmental protection for stranded and solid wire conductors, connections, joints and terminals in electrical engineering.
The heat shrink I have for sale is manufacture by a very well established company in China and has been operating in the electrical industry since 1998. The product is manufactured and complies with RoHS (Restriction of Hazardous Substances) standards.
For bulk quantities message Ray to discuss your requirements
If you need Cable Ties and Silicone Self Fusing Tape please visit my store
For bulk quantities message Ray to discuss your requirements
If you need Cable Ties and Silicone Self Fusing Tape please visit my store
|
Size
|
Dimension before
shrinking (mm) |
Dimension After
shrinking (mm) |
Length
Per Piece mm |
Quantity
|
Total Length
meter |
||
|
Internal
diameter |
Wall
thickness |
Max Internal
diameter |
Wall thickness |
||||
|
1.0/0.5
|
1.4 ± 0.3
|
0.2 ± 0.05
|
0.4 ± 0.1
|
0.28 ± 0.5
|
200
|
10
|
2 |
|
2.0/1.0
|
2.4 ± 0.3
|
0.25 ± 0.05
|
0.9 ± 0.1
|
0.45 ± 0.1
|
200
|
10 | 2 |
|
3.0/1.5
|
3.4 ± 0.3
|
0.25 ± 0.05
|
1.4 ± 0.1
|
0.45 ± 0.1
|
200
|
10
|
2 |
|
4.0/2.0
|
4.4 ± 0.4
|
0.25 ± 0.05
|
1.8 ± 0.1
|
0.45 ± 0.1
|
200
|
10
|
2 |
|
5.0/2.5
|
5.4 ± 0.4
|
0.35 ± 0.05
|
2.3 ± 0.2
|
0.55 ± 0.1
|
200
|
10
|
2 |
|
6.0/3.0
|
6.4 ± 0.4
|
0.35 ± 0.05
|
2.8 ± 0.2
|
0.55 ± 0.1
|
200
|
10
|
2 |
|
8.0/4.0
|
8.4 ± 0.4
|
0.35 ± 0.05
|
3.8 ± 0.2
|
0.55 ± 0.1
|
200
|
10
|
2 |
|
10.0/5.0
|
10.4 ± 0.4
|
0.35 ± 0.05
|
4.8 ± 0.2
|
0.60 ± 0.1
|
200
|
10
|
2 |
|
12.0/6.0
|
12.4 ± 0.4
|
0.35 ± 0.1
|
5.7 ± 0.3
|
0.70 ± 0.1
|
200
|
10
|
2 |
|
15.0/7.5
|
15.4 ± 0.5
|
0.35 ± 0.1
|
7.2 ± 0.3
|
0.70 ± 0.1
|
200
|
10
|
2 |
|
20.0/10.0
|
21.0 ± 0.5
|
0.5 ± 0.1
|
9.7 ± 0.3
|
0.90 ± 0.1
|
200
|
10
|
2 |
|
|
|
|
|
|
|
||
(MW-HS)
| SKU | MW-HS |
| Brand | Maxwel |
| Shipping Weight | 0.0100kg |
| Shipping Width | 0.010m |
| Shipping Height | 0.010m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.000020000m3 |
| Unit Of Measure | ea |
